Alexa Mini Set
- ALEXA sensor and image quality with internal 4:3 & ARRIRAW recording
- compact lightweight carbon fiber body for lightweight
- Integrated lens motor control and ND filters
- Perfect for gimbals
- Future-proof technology with 4K UHD, HDR & HFR recording
Prijs per dag
€ 875,00
accessoires
-
Zeiss Master Anamorphic set
Large aperture of T1.9 for shallow depth of focus Low distortion for uncompromised cinemascope Cinematic bokeh Beautiful skin tones and precise color rendition All lenses 95mm front€ 1.500,00 per dag -
Arri WCU-4 2 Channel
ALEXA Remote Control Vibrating Markers Easy-to-Read Lens Data Display Backlit Focus Knob€ 250,00 per dag -
Leica Summilux-C Set 8x
T1.4 aperture lightweight compact design extremely high resolution Leica smoothness 95mm front Set uit te breiden met 29 & 65mm€ 1.250,00 per dag
overview

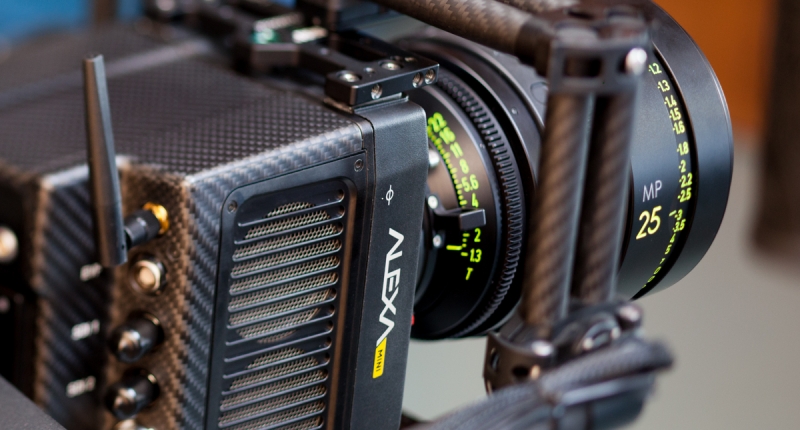

The Alexa Mini is the smallest camera in our Arri-range and is excellent for gimbal and drone applications, but is also a lightweight option as a handheld camera. The specifications match with the familiar Arri Amira, including internal ND filters, internal Prores 4k UHD recording and up to 200fps in 2k.
Another unique element of the Alexa Mini is the integrated lens motor controller. Our new C-Force mini motors can be connected directly to the Alexa mini without the intervention of a single receiver. It is possible to connect multiple motors to control both the focus and the iris as the zoom. The C-force mini system works in combination with the WCU-4 hand unit.
Also, we have a license for the WCU-4 handunit that allows to operate the Alexa mini wireless. For example, you can easily switch ND filter, framerate and ISO. Also WiFi can be used in short range to control the camera settings. Very useful for gimbal and grip applications!
specificaties
| Product | ALEXA Mini |
| Camera type | 35 mm format film-style digital camera with lightweight and compact carbon body, switchable active sensor area, support for ARRI MVF-1 viewfinder, built-in remote control capabilities via ARRI Electronic Control System and Wi-Fi, support for cforce motors, built-in motorized ND filters, interchangeable lens mounts and ARRI Lens Data System as well as Lens Data Archive. |
| Dimensions |
Length: 185 mm/7.3" Width: 125 mm/4.9" Height: 140 mm/5.5" (camera body with PL lens mount) Click here for a drawing with details about the recording areas, surround views and framelines |
| Recording codec | ProRes 4444XQ, 4444, 422 (HQ), 422, 422(LT), MXF/ARRIRAW |
| Recording frame rates |
16:9 ProRes HD 0.75 - 200 fps ProRes S16 HD 0.75 - 200 fps ProRes 2K 0.75 - 200 fps ProRes 3.2K 0.75 - 60 fps ProRes UHD 0.75 - 60 fps MFX/ARRIRAW 16:9 2.8K 0.75 - 48 fps 4:3 ProRes 4:3 2.8K 0.75 - 50 fps 6:5* ProRes 2:39:1 2K Ana. 0.75 - 120 fps 8:9** ProRes HD Ana. 0.75 - 120 fps Open Gate MFX/ARRIRAW 3.4K Open Gate 0.75 - 30 fps * 4:3 cropped ** Center crop from anamorphic (1) Minimum frame rate is always 0.75 fps (2) The „recording resolution“ determines the number of horizontal pixels that will be recorded (the number of vertical pixels is dependent on the recording file type and sensor mode) <a data-cke-saved-href="http://www.arri.com/fileadmin/media/arri.com/camera/35-format-digital/alexa_mini/Max_Frame_Rates_ALEXA-Mini.jpg" href="http://www.arri.com/fileadmin/media/arri.com/camera/35-format-digital/alexa_mini/Max_Frame_Rates_ALEXA-Mini.jpg" target="target=" _blank"="" style="margin: 0px; padding: 0px 0px 0px 12px; border: 0px; outline: 0px; background-image: url(http://www.arri.com/fileadmin/templates/images/content_ad/downloads_link_marker.png); vertical-align: baseline; color: rgb(0, 96, 172); text-decoration: none; background-position: 0px 6px; background-repeat: no-repeat no-repeat;">Click here for a detailed table of frame rates |
| Color output | Rec 709, custom look or Log C |
| Look control | Import of custom 3D LUT, ASC CDL parameter (slope, offset, power, saturation) |
| Adjustable image parameters | Knee, gamma, saturation, black gamma, saturation by hue |
| Focus and exposure control | Peaking, zebra, false color, waveform |
| White balance | Manual and auto white balance |
| Sound level | < 20 dB(A) at standard frame rates |
| Environmental | '-20° C to 45° C (-4° F to 113° F) @ 95% humidity max, non-condensing splash and dust-proof through sealed electronics |
| Viewfinder | Multi Viewfinder MVF-1 (OLED and LCD) with flip-out LCD screen and military-grade connector to camera Camera Control Panel (CCP-1) LCD control panel with option to daisy-chain MVF-1 |
| Control interface | Soft buttons and OSD on SDI output, integration of Transvideo Starlite HD5-ARRI touch interface WCU-4 hand-unit with control over operational parameters. |
| ARRI lens motor control | Built-in white coded radio interface for ARRI lens and camera remote control LBUS motor output for daisy-chainable cforce lens control motors Lens Data Archive |
| Wi-Fi remote control | Built-in Wi-Fi interface and web-based remote control from phones, tablets and laptops |
| Custom control | Optional GPIO interface for integration with custom control interfaces |
| Power input | Lemo 8-pin, 10.5-34 V DC |
| Video outputs | 2x HD-SDI out 1.5G and 3G: uncompressed HD video with embedded audio and metadata, 6G SDI in UHD and 3.2K recording modes. |
| Inputs | SDI-Genlock (optional activation through ARRI Service), Timecode (in and output) |
| Other interfaces |
USB 2.0 (for user sets, looks etc.) Ethernet for service and web remote control EXT accessory interface w. RS pin and unregulated power output (outputs battery voltage) |
alternatieven
-
Amira Set
Same 35 mm sensor as ALEXA Premium License Highspeed up to 200fps – full sensor area Prores recording up to 4444 on CF2.0 cards up to 4K resolution Internal ND filters (0.6/1.2/2.1) 'Single Operator' design Log C & Rec 709 Dynamic range of 14 stops Natural colors and skin tones€ 750,00 per dag -
Sony F55 4K cameraset
Super 35 4KCM Internal 4K/2K/HD Recording on SxS cards Up 240 fps 2K with Optional AXS-R5 recorder Electronic Global Shutter PL -, BNCR, Nikon- or EF-Mount available Compact and Lightweight 14 stops exposure latitude€ 525,00 per dag -
Alexa SXT set
Top of the Arri line-up In Camera ArriRAW 4:3 Sensor mode for anamorphic shooting€ 800,00 per dag -
Red Weapon Monstro 8K Vista Vision Set
8K Monstro Vistavision Sensor 8192x4320 pixels (35.4 Megapixel) Lightweight Carbon Body Up to 300 fps (at 2K 2.4:1 2048 x 864) Interchangeable Optical Lowpass Filters Interchangeable Lens Mount PL/EF/LeicaM/BNCR Records in RedRaw and ProRes simultaneously€ 1.000,00 per dag

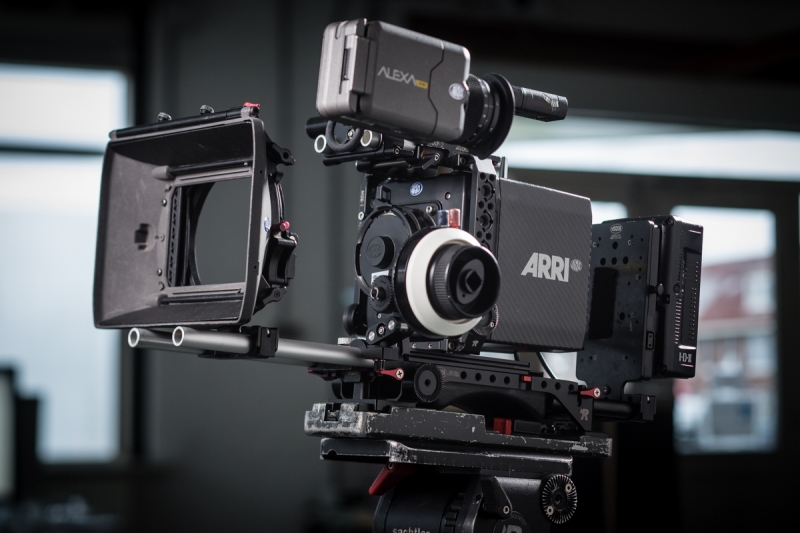

In de set
- -Alexa Mini body
- -Alexa Mini Viewfinder
- -Raw and Anamorphic license
- -2x128GB an 1x256GB Cfast cards with USB 3.0 card reader
- -15/19mm and shoulder support
- -Mattebox
- -FollowFocus
- -5x V-lock battery and charger
- -handle bars
- -5.6" monitor with arm
