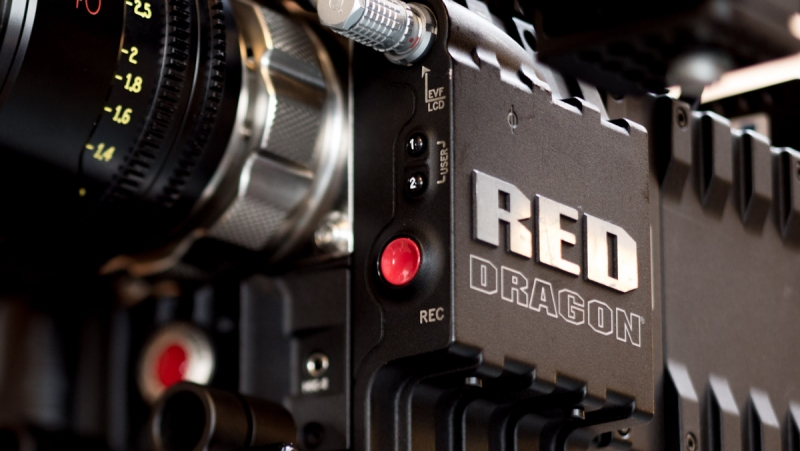

RED Epic Dragon set
- 6K Dragon sensor
- Interchangeable Lens mount PL/EF/LeicaM/BNCR
- up to 300fps (at 2K 2.4:1 2048 x 864)
- 75fps in 6K
- Compact and lightweight
- fits in a Movi M15 or Pro
Prijs per dag
€ 650,00
accessoires
-
TVlogic 17inch HDLCD monitor
1920x1080 17inch panel Waveform en Vectorscope Aluminium Flightcase met Sunhood 2x SDI input, 1x output 300 cd/m2€ 100,00 per dag
overview
De RED Epic Dragon 6K is de opvolger van de RED Epic en heeft dezelfde DSMC2 body als de meeste RED camera's. de 6K Dragon sensor kan framerates tot 75fps in 6K aan, en zelfs tot 300fps in 2K crop modus. De kleine, lichtgewicht body maakt de camera uitstekend geschikt om in een gimbal, zoals een van onze Freefly Movi's te kunnen hangen. De efficiente REDCODE RAW codec en compressie van RED zorgt ervoor dat je op deze hoge resoluties nog steeds efficient kan zijn in de post. Ook hebben we veel lens mount opties voor de RED cameras. Zo kun je de mount veranderen van PL naar EF, Leica M of BNCR mount.specificaties
SENSOR TYPE. RED DRAGON 19.4 Megapixel CMOS
EFFECTIVE PIXELS. 6144 x 3160
SENSOR SIZE 30.7 mm x 15.8 mm (Diagonal: 34.5 mm)
DYNAMIC RANGE 16.5 stops
MAX DATA RATES Up to 300 MB/s using RED MINI-MAG (480GB & 960GB)
Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)
MAX FRAME RATES 75 fps at 6K Full Format (6144 x 3160), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES (PROJECT TIMEBASE)23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions
REDCODE SETTINGS RANGE FROM 2:1 UP TO 22:
13:1 REDCODE for 6K Full Format (6144 x 3160) at 24 fps
7:1 REDCODE for 6K Full Format (6144 x 3160) at 60 fps
2:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
3:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps
REDCODE RAW ACQUISITION FORMATS
6K Full Format (6144 x 3160), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
APPLE PRORES
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 29.97 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps
AVID CODECS
DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps
CONSTRUCTION Carbon Fiber, Magnesium, and Aluminum Alloy
WEIGHT 3.3 lbs (BRAIN with Integrated Media Bay)
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
RELATIVE HUMIDITY 0% to 85% non-condensing
COLOR MANAGEMENT
Supports 33×33×33, 32×32×32, 26×26×26, and 17×17×17 3D LUTs
Variable number of 3D LUT outputs with DSMC2 expander module
User programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing
AUDIO
Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz
REMOTE CONTROL
Integrated R.C.P. WiFi antenna
Ethernet, RS232, and GPI Trigger with DSMC2 expander module
MONITOR OUTPUTS
3G-SDI (HD-SDI) and HDMI with DSMC2 expander module
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI Only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
REDCINE-X PRO DELIVERY FORMATS
4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
VIDEO EDITING SOFTWARE COMPATIBILITY Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro
* Tech specs reflect both current and projected information. Everything is subject to change.
EFFECTIVE PIXELS. 6144 x 3160
SENSOR SIZE 30.7 mm x 15.8 mm (Diagonal: 34.5 mm)
DYNAMIC RANGE 16.5 stops
MAX DATA RATES Up to 300 MB/s using RED MINI-MAG (480GB & 960GB)
Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)
MAX FRAME RATES 75 fps at 6K Full Format (6144 x 3160), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES (PROJECT TIMEBASE)23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions
REDCODE SETTINGS RANGE FROM 2:1 UP TO 22:
13:1 REDCODE for 6K Full Format (6144 x 3160) at 24 fps
7:1 REDCODE for 6K Full Format (6144 x 3160) at 60 fps
2:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
3:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps
REDCODE RAW ACQUISITION FORMATS
6K Full Format (6144 x 3160), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
APPLE PRORES
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 29.97 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps
AVID CODECS
DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps
CONSTRUCTION Carbon Fiber, Magnesium, and Aluminum Alloy
WEIGHT 3.3 lbs (BRAIN with Integrated Media Bay)
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
RELATIVE HUMIDITY 0% to 85% non-condensing
COLOR MANAGEMENT
Supports 33×33×33, 32×32×32, 26×26×26, and 17×17×17 3D LUTs
Variable number of 3D LUT outputs with DSMC2 expander module
User programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing
AUDIO
Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz
REMOTE CONTROL
Integrated R.C.P. WiFi antenna
Ethernet, RS232, and GPI Trigger with DSMC2 expander module
MONITOR OUTPUTS
3G-SDI (HD-SDI) and HDMI with DSMC2 expander module
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI Only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
REDCINE-X PRO DELIVERY FORMATS
4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
VIDEO EDITING SOFTWARE COMPATIBILITY Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro
* Tech specs reflect both current and projected information. Everything is subject to change.
alternatieven
-
RED Scarlet cameraset
Complete set Mysterium-X sensor 4K (tot 30fps) Up to 60fps (2K) Interchangeable Lens mount PL/EF/LeicaM/BNCR€ 275,00 per dag -
Sony F55 4K cameraset
Super 35 4KCM Internal 4K/2K/HD Recording on SxS cards Up 240 fps 2K with Optional AXS-R5 recorder Electronic Global Shutter PL -, BNCR, Nikon- or EF-Mount available Compact and Lightweight 14 stops exposure latitude€ 325,00 per dag -
Alexa Mini Set
ALEXA sensor and image quality with internal 4:3 & ARRIRAW recording compact lightweight carbon fiber body for lightweight Integrated lens motor control and ND filters Perfect for gimbals Future-proof technology with 4K UHD, HDR & HFR recording€ 795,00 per dag -
Red Weapon Monstro 8K Vista Vision Set
8K Monstro Vistavision Sensor 8192x4320 pixels (35.4 Megapixel) Lightweight Carbon Body Up to 300 fps (at 2K 2.4:1 2048 x 864) Interchangeable Optical Lowpass Filters Interchangeable Lens Mount PL/EF/LeicaM/BNCR Records in RedRaw and ProRes simultaneously€ 775,00 per dag
In de set
- RED Epic Dragon 6K body
- RED Side handle
- RED Bomb EVF
- 15 or 19mm support
- Mattebox
- Followfocus
- RED SSD set; 4x64GB and reader
- RED V-lock accuset
