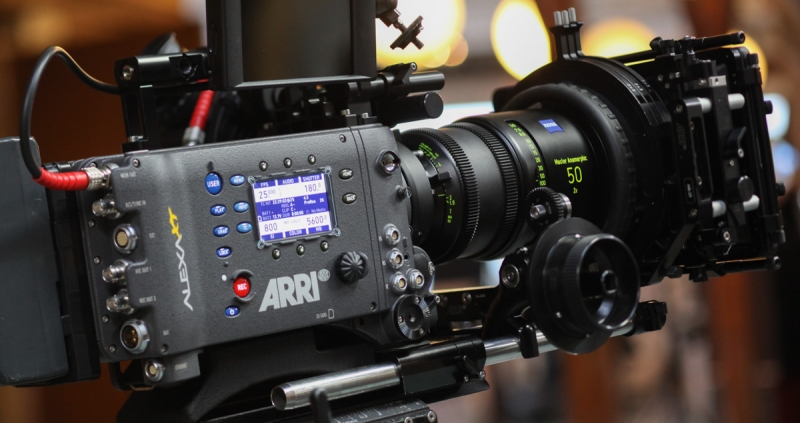

AlexaXR Plus set
- The classic Alexa allrounder
- Integrated wireless lens control systeem
- Supporting Arri's LDS system
- 2k resolution
- up to 120fps highspeed
Prijs per dag
€ 325,00
accessoires
-
Arri WCU-4 2 Channel
ALEXA Remote Control Vibrating Markers Easy-to-Read Lens Data Display Backlit Focus Knob€ 250,00 per dag -
Small HD 702 Directors Monitor Set
SmallHD 702 bright 1000 nits for daylight viewing 7inch 1920x1080 FullHD LCD Fitted in Directors Cage V-lock Batteries with D-tap included mounting points for Bolt receiver Focus-assist, False Color, Waveform etc€ 110,00 per dag -
Arri Mastergrip MRR-1 Set
zoomcontrol works in combination with a c-force mini motor camera start/stop also to use as iris or focus control touchscreen€ 125,00 per dag
overview
Inmiddels een echte klassieker. De AlexaXR Plus is een allrounder van ARRI, met de welbekende 2K sensor en highspeed opties tot 120fps. De camera heeft een geïntegreerd wireless lens control systeem, met LDS support. Dit maakt het mogelijk om eenvoudig met onze WCU-4 handunit te werken.specificaties
| Camera Type | 35 format film-style digital camera with an electronic viewfinder, an Open Gate/4:3/16:9 switchable active sensor area, built-in support for the ARRI Wireless Remote System and the cmotion cvolution lens control system, built-in filter holder, Lens Data System, integrated shoulder arch and receptacles for 15 mm lightweight rods |
| Sensor | 35 format ALEV III CMOS sensor with Bayer pattern color filter array. |
| Photo Sites |
16:9 2880 x 1620 used for ARRIRAW 16:9 2880 x 1620 down sampled to 1920 x 1080 for HD-SDI, ProRes HD 16:9 and DNxHD HD 16:9 2868 x 1612 down sampled to 2048 x 1152 for ProRes 2K 16:9 3168 x 1778 used for ProRes 3.2K 16:9 4:3 Full 2880 x 2160 used for ARRIRAW 4:3 Full 2868 x 2150 down sampled to 2048 x 1536 for ProRes 2K 4:3 4:3 Cropped 2578 x 2160 used for ARRIRAW 4:3 Cropped Open Gate 3414 x 2198 used for ARRIRAW Open Gate For a drawing with details about the recording areas, surround views and framelines, page 1 of 2 click here |
| Operating Modes |
16:9, 4:3 Full, 4:3 Cropped or Open Gate sensor modes. Switching takes approx. 60 seconds. 16:9 available for ARRIRAW, ProRes and DNxHD recording. 4:3 Full available for ARRIRAW and ProRes 2K recording. 4:3 Cropped and Open Gate available for ARRIRAW recording. Regular or High Speed mode. Switching takes approx. 20 seconds. |
| Frame Rates |
16:9 ProRes HD 0.75 - 120 fps ProRes 2K 0.75 - 60 fps ProRes 3.2K 0.75 - 30 fps DNxHD HD 0.75 - 120 fps ARRIRAW 0.75 - 120 fps 4:3 Full ProRes 2K 0.75 - 48 fps ARRIRAW 0.75 - 90 fps 4:3 Cropped ARRIRAW 0.75 - 96 fps Open Gate ARRIRAW 0.75 - 75 fps All speeds adjustable with 1/1000 fps precision. To record above 60 fps, the camera needs to be switched to high speed mode. Note: some limitations based on recording media or recording file settings apply. For a detailed table of frame rates for ALEXA XT cameras click here |
| Recording Outputs |
2x 1.5G or 3G REC OUT BNC connectors for uncompressed 1920 x 1080 4:4:4 RGB or 4:2:2 YCbCr HD video at 23.976, 24, 25, 29.97, 30, 50, 59.94, or 60 fps. Recording other speeds requires a recorder with Variflag support. Legal or extended range signal mapping. Embedded audio, time code, metadata and recording flag. ALEXA XT models do not offer ARRIRAW T-Link output. For a detailed table of REC OUT options click here |
| Monitor Output | 2x MON OUT BNC connector for uncompressed 1.5 G HD-SDI video: 1920 x 1080 (16:9), 4:2:2 YCbCr; legal range HD video at 23.976, 24, 25, 29.97, or 30 fps. Embedded audio, time code, metadata and recording flag. |
| Image Processing | 16 bit linear internal image processing in full ALEXA native color space. Target output color spaces for ProRes, DNxHD, REC OUT and MON OUT: Log C or Rec 709. For Rec 709, a customized look can be applied during record and playback with ARRI Look Files. Optional horizontal image mirroring. |
| Synchronization | Master/Slave mode for precision sync of settings, sensor, processing, HD-SDI outputs and QuickTime/ProRes or MXF/DNxHD recording for 3D applications. PHASE user button for shifting camera phase to move phase artifacts out of frame, i.e. when shooting a CRT monitor or rear screen projector (works in Rec Run TC mode). |
| Playback | Playback of ARRIRAW, ProRes or DNxHD from XR Capture Drive or playback of ProRes or DNxHD from SxS PRO or SxS PRO cards visible on EVF-1, MON OUT and REC OUT. Playback audio available over headphone jack and embedded in the MON OUT and REC OUT signal. |
| Audio | 1x XLR 5 pin AUDIO IN for 2 channel, line level, balanced audio. 24 bit/48 kHz A/D conversion. Uncompressed PCM audio recording to ARRIRAW, ProRes, DNxHD (1) and embedded in all HD-SDI outputs. Only available with same project/sensor speed at 23.976, 24, 25, 29.97 and 30 fps. Max of 2.5 dBm output from AUDIO OUT headphones connector. |
| Connectors |
1x media slot for XR Capture Dive or SxS adapter 2x BNC recording out HD-SDI, 1.5G/3G (REC OUT 1 and REC OUT 2) 2x BNC monitoring out HD-SDI, 1.5G (MON OUT 1 and MON OUT 2) 1x XLR 5-pin analog audio in (AUDIO IN) 1x BNC return video in HD-SDI, 1.5G (RET/SYNC IN) 1x LEMO 16-pin external accessory interface (EXT) 1x Fischer 2-pin 24 V power in (BAT) 3x Fischer 3-pin 24 V remote start and accessory power out (RS) 1x LEMO 2-pin 12 V accessory power out (12 V) 1x LEMO 5-pin timecode in/out (TC) 1x TRS 3.5 mm headphone mini stereo jack (AUDIO OUT) 1x custom LEMO 16-pin electronic viewfinder (EVF) 1x custom LEMO 10-pin Ethernet with 24 V power (ETHERNET) 1x Fischer 5-pin Lens Data Display (LDD) 2x Fischer 5-pin Lens Control System (LCS) 1x Fischer 12-pin for CLM-2, CLM-3, CLM-4 or later (IRIS) 1x Fischer 12-pin for CLM-2, CLM-3, CLM-4 or later (FOCUS) 1x Fischer 12-pin for CLM-2, CLM-3, CLM-4 or later (ZOOM) BNC connectors designed for fast exchange without camera disassembly. These connectors require a special tool. |
alternatieven
-
Arri Amira Set
Same 35 mm sensor as ALEXA Premium License Highspeed up to 200fps – full sensor area Prores recording up to 4444 on CF2.0 cards up to 4K resolution Internal ND filters (0.6/1.2/2.1) 'Single Operator' design Log C & Rec 709 Dynamic range of 14 stops Natural colors and skin tones€ 675,00 per dag -
Alexa Mini Set
ALEXA sensor and image quality with internal 4:3 & ARRIRAW recording compact lightweight carbon fiber body for lightweight Integrated lens motor control and ND filters Perfect for gimbals Future-proof technology with 4K UHD, HDR & HFR recording€ 795,00 per dag -
Red Weapon Monstro 8K Vista Vision Set
8K Monstro Vistavision Sensor 8192x4320 pixels (35.4 Megapixel) Lightweight Carbon Body Up to 300 fps (at 2K 2.4:1 2048 x 864) Interchangeable Optical Lowpass Filters Interchangeable Lens Mount PL/EF/LeicaM/BNCR Records in RedRaw and ProRes simultaneously€ 775,00 per dag
In de set
- Alexa Plus Body
- 2x 128gb and 2x 64gb SxS cards with USB 3.0 reader (codex cards and codex mount availaible if requested)
- 15/19mm baseplate
- 5x v-mount 24v batteries
- Mattebox MB-29 Arri or similiar
- Follow Focus FF-5 or FF-4
- Tv Logic 5.6 monitor with magic arm
- raincover
