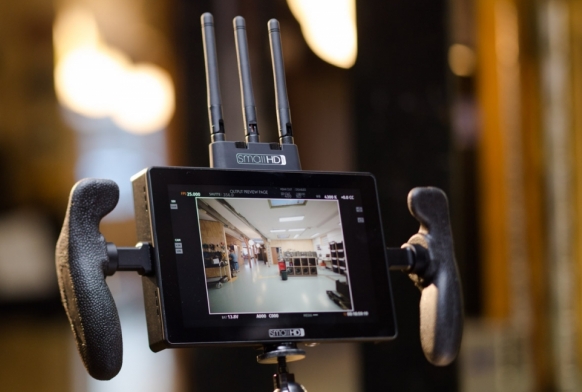

SmallHD Cine7 Rx Bolt 500 Monitor
- FullHD (1920x1200) 7inch screen
- up to 1800 nits brightness
- 100% DCI-P3 Color Gamut
- Built in Bolt 500 RX FullHD Receiver
- Arri Camera Control enabled
Prijs per dag
€ 135,00
accessoires
-
Alexa Mini Set
ALEXA sensor and image quality with internal 4:3 & ARRIRAW recording compact lightweight carbon fiber body for lightweight Integrated lens motor control and ND filters Perfect for gimbals Future-proof technology with 4K UHD, HDR & HFR recording€ 795,00 per dag -
Teradek Bolt 500 SDI (HDMI) Set
Up to 500' Range 1 x Transmitter and 1 x Receiver Transmits up to 1080p60 Near-Zero Latency SDI and HDMI on Transmitter and Receiver SDI-HDMI Cross Conversion* Transmit to up to 4 Receivers€ 50,00 per dag -
SmallHD Cine7 RX Bolt 750 Monitor
FullHD (1920x1200) 7inch screen up to 1800 nits brightness 100% DCI-P3 Color Gamut Built in Bolt 750 RX FullHD/4K receiver€ 145,00 per dag
overview
De Cine7 serie van SmallHD is met de hoge helderheid (1800nits) en de uitstekende kleurweergave een fijne afkijkmonitor voor op de set. Deze versie heeft een ingebouwde Bolt 500 ontvanger. Handig als directors monitor. Is te pairen met alle Bolt 500 ontvangers.specificaties
Display
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Active Area | 5.95 x 3.72" / 15.11 x 9.45 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 1800 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 322 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
I/O
| Video |
1 x HDMI Type D Input 1 x HDMI Type D Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Input/Output |
| Embedded Audio |
HDMI: 8-Channel SDI: 8-Channel |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x 2-Pin LEMO (34 VDC) Input |
| Other I/O | 1 x USB 2.0 (Micro-USB) |
| Card Slot | 1 x SD |
Format Support
| Video Format |
HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
| Video Signal Conversion |
SDI to HDMI UHD 4K: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60/100/119.88/120 720p: 23.98/24/25/29.97/30/50/59.94/60 480i: 59.94 576i: 50 HDMI to SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 480i: 50/59.94/60/100/119.88/120/239.76/240 576i: 50/59.94/60/100/119.88/120 |
Power
| DC Input Power | 6 to 16 VDC at 2.5 A |
| Battery Type | 1 x L-Series, V-Mount (Interchangeable Mount) |
Mounting
| Mounting | 4 x 1/4"-20 Female |
Environmental
| Certifications | CE, IC, RoHS, as per Manufacturer |
| Operating Temperature | 30 to 100°F / -1 to 37°C |
| Storage Temperature | 0 to 120°F / -17 to 48°C |
General
| Dimensions (W x H x D) | 7.1 x 4.7 x 1.3" / 18.03 x 11.94 x 3.3 cm |
| Weight | 20 oz / 567 g |
alternatieven
-
Small HD 702 Directors Monitor Set
SmallHD 702 bright 1000 nits for daylight viewing 7inch 1920x1080 FullHD LCD Fitted in Directors Cage V-lock Batteries with D-tap included mounting points for Bolt receiver Focus-assist, False Color, Waveform etc€ 110,00 per dag -
Small HD 5 inch Bolt Rx wireless monitor
Built in bolt 500 receiver Hand grips Anamorphic de-squeeze LUT management Pixel to pixel zoom Focus-assist, False Color, Waveform etc€ 95,00 per dag -
SmallHD Cine7 RX Bolt 750 Monitor
FullHD (1920x1200) 7inch screen up to 1800 nits brightness 100% DCI-P3 Color Gamut Built in Bolt 750 RX FullHD/4K receiver€ 145,00 per dag
In de set
- Cine7 RX
- 3x antenne
- V-lock backplate
- 2x BNC kort
- D-tap cable
- Armpje
