SmallHD Cine7RX Bolt 750 set
- FullHD (1920x1200) 7inch screen
- up to 1800 nits brightness
- 100% DCI-P3 Color Gamut
- Built in Bolt 750 RX FullHD/4K receiver
Prijs per dag
€ 160,00
accessoires
-
Teradek Bolt 750 4K SET
1x TX, 1x RX Up to 750' Range Transmits up to 1080p60 via SDI, 4K via HDMI input Near-Zero Latency Transmit to up to 6 Receivers (one included) Manage Bolt from your smartphone€ 95,00 per dag -
Teradek Bolt 750 4K Transmitter
Up to 228m Range Transmits up to 1080p60 via SDI, 4K via HDMI input Near-Zero Latency Transmit to up to 6 Receivers (not included) Manage Bolt from your smartphone€ 50,00 per dag
overview

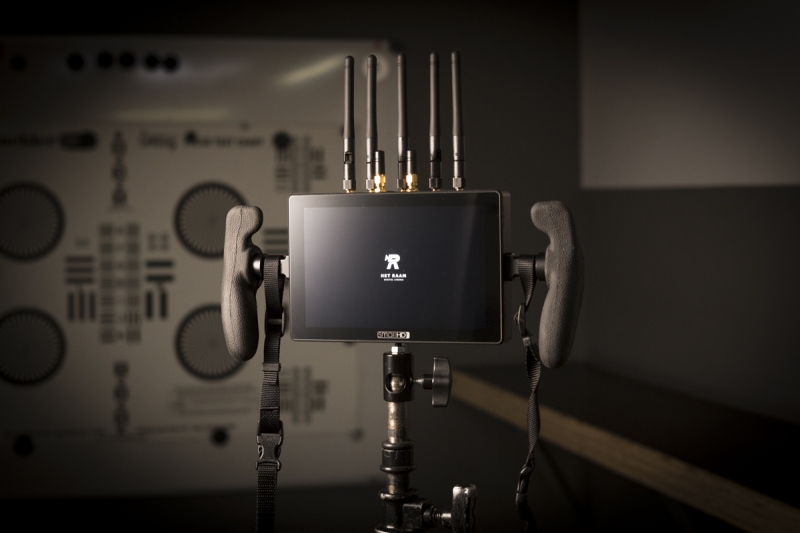

De Cine7 serie van SmallHD is met de hoge helderheid (1800nits) en de uitstekende kleurweergave een fijne directors monitor voor op de set.Deze versie heeft een ingebouwde Bolt 500 ontvanger. Hij is te pairen met alle Bolt 750 transmitters.
Word geleverd met 2 V-Lock Accu's, een nekstrap en handvatten!
specificaties
Display
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Active Area | 5.95 x 3.72" / 15.11 x 9.45 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 1800 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 322 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
I/O
| Video |
1 x HDMI Type D Input 1 x HDMI Type D Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Input/Output |
| Embedded Audio |
HDMI: 8-Channel SDI: 8-Channel |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x 2-Pin LEMO (34 VDC) Input |
| Other I/O | 1 x USB 2.0 (Micro-USB) |
| Card Slot | 1 x SD |
Format Support
| Video Format |
HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
| Video Signal Conversion |
SDI to HDMI UHD 4K: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60/100/119.88/120 720p: 23.98/24/25/29.97/30/50/59.94/60 480i: 59.94 576i: 50 HDMI to SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 480i: 50/59.94/60/100/119.88/120/239.76/240 576i: 50/59.94/60/100/119.88/120 |
Power
| DC Input Power | 6 to 16 VDC at 2.5 A |
| Battery Type | 1 x L-Series, V-Mount (Interchangeable Mount) |
Mounting
| Mounting | 4 x 1/4"-20 Female |
Environmental
| Certifications | CE, IC, RoHS, as per Manufacturer |
| Operating Temperature | 30 to 100°F / -1 to 37°C |
| Storage Temperature | 0 to 120°F / -17 to 48°C |
General
| Dimensions (W x H x D) | 7.1 x 4.7 x 1.3" / 18.03 x 11.94 x 3.3 cm |
| Weight | 20 oz / 567 g |
alternatieven
-
Small HD 702 Directors Monitor Set
SmallHD 702 bright 1000 nits for daylight viewing 7inch 1920x1080 FullHD LCD Fitted in Directors Cage V-lock Batteries with D-tap included mounting points for Bolt receiver Focus-assist, False Color, Waveform etc€ 110,00 per dag -
TVLogic F-7H Hibrite Directors Monitor Set
Vocas Handheld Cage 2x 73 IDX V-Lock Full HD resolution (1920 x 1080) ultra-high luminance of 3,600nit Daylight viewable SDI and HDMI in- and outputs SDI <-> HDMI cross conversion Waveform & Vectorscope Focus Assist 3D LUT import HDR emulation€ 125,00 per dag -
SmallHD Cine7 Rx Bolt 500 Monitor
FullHD (1920x1200) 7inch screen up to 1800 nits brightness 100% DCI-P3 Color Gamut Built in Bolt 500 RX FullHD Receiver Arri Camera Control enabled€ 135,00 per dag
In de set
- Cine7 Rx Bolt 750
- 5x antenne
- V-lock backplate
- 2x BNC kort
- D-tap cable
- Magic Arm
- 2x Nano V-lock batteries.
- V-lock charger
