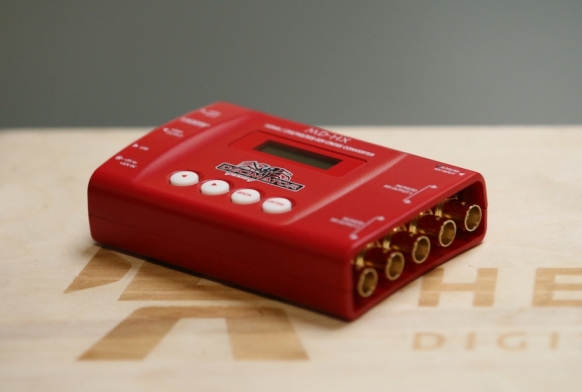

Decimator Cross Converter HDMI - SDI
- Vele mogelijkheden
- Zowel stand alone als met computer in te stellen
- Scaling and Converting
Prijs per dag
€ 35,00
overview
HDMI / SDI CROSS CONVERTER
with Scaling, Frame Rate Conversion, Overlays,
Video Test Pattern Generator and Audio Tone Generator
with Scaling, Frame Rate Conversion, Overlays,
Video Test Pattern Generator and Audio Tone Generator
-
Support both 3G level A and B on the input and output. Allowing conversion between A and B.
-
Horizontal and/or Vertical image flipping via the built in scaler.
-
SDI IN to HDMI and SDI OUT
-
SDI IN to SDI OUT and HDMI IN to HDMI OUT
-
SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
-
SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
-
HDMI IN to SDI OUT and SDI IN to HDMI OUT
-
HDMI IN to HDMI and SDI OUT
-
HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
-
HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
-
Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
-
Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
-
Scaled SDI IN to HDMI and SDI OUT
-
Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
-
Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
-
Scaled HDMI IN to HDMI and SDI OUT
-
Professional 3G/HD/SD Test Pattern Generator featuring:
-
26 Selectable Output Formats
-
54 Test Patterns including Luma and Chroma Zone-plates
-
Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
-
The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.
-
This unit also includes:
-
(3G/HD/SD)-SDI Active Loop-Through Output
-
Full 16-Channel Audio Metering Overlays
-
Adjustable Safe Title and Safe Action Overlays and static Center Cross
-
Text Overlays
-
USB port for control and firmware updates
-
New Metal Thread Locking DC Power Socket
-
Power Supply, HDMI Cable and USB Cable
specificaties
- SDI IN to HDMI and SDI OUT
- SDI IN to SDI OUT and HDMI IN to HDMI OUT
- SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- HDMI IN to SDI OUT and SDI IN to HDMI OUT
- HDMI IN to HDMI and SDI OUT
- HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
- Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
- Scaled SDI IN to HDMI and SDI OUT
- Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
- Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
- Scaled HDMI IN to HDMI and SDI OUT
alternatieven
In de set
- Cross Converter
- Netvoeding
- D-tap voeding
- USB kabel voor bediening met computer
- USB stick met drivers
- 2x HDMI kabel
- 2x BNC kabel
